Model No. | Overall length(mm) | Weight(g) | Grip Size Diameter (mm) | Air Consumption(cm3/stroke) | Power (approx.)(N) | Air pressure(MPa) |

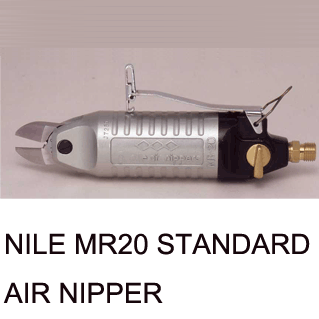

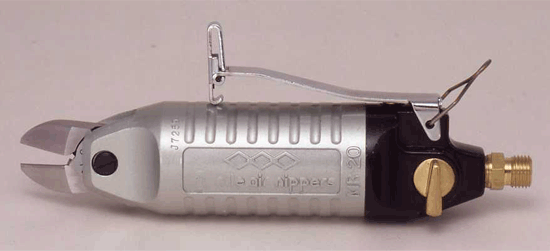

MR20 | 155 | 340 | 45 | 230 | 1,370 | 0.5~0.6 |
Model No. | Blade No. *Carbide tipped |
Cutting capacity ( Diameter=mm ) | |||||
Steel wire | Copper wire | Piano wire | Crimping | Plastics(Soft) | Plastics(Hard) | ||
MR20 | S5, S5S, P6, EP6, CR6 | 2.0 | 2.6 | - | - | - | - |
*Z6, ZCR6 | 2.0 | 2.6 | 1.0 | - | - | - | |
F5, FD5 | - | - | - | - | 7.0 | 5.0 |
