SUPER MICRO AIR GRINDER STRAIGHT TYPE MS3H
No.:MS-3H
Brand:SUPER
Manufacturer:JAPAN
Weight:0.60Kg
Price:155USD



*Price per set.
*Weight per set with box.
*If you can't order this item online, you can send a inquiry "sales@hakuma.jp" to us by email.
*Join HAKUMA CLUB to receive member price and other member benefits.


share to :


Description:

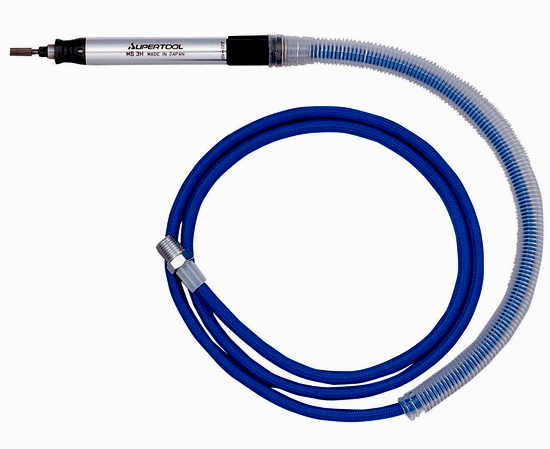

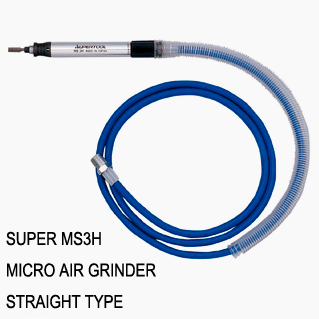

Model No. MS3H, SUPER Micro Air Grinder (Straight type).
.Φ3mm (Collet)
.Rubber grip attached.

**New Model is now at the center of stage, powered up!**
**Rotation torque greatly enhanced**


For precision grinding and polishing
MS3H.MS6H.MS312H


*FEATURES:
.Pencil Type of the smallest shape and super-lightness befitting your finger work.
.Stability and durability by the use of precision-designed Vane Motor.
.Precison machining attained by high-speed rotation and high output.
.Excellent qualitative performance of long-time durability with no off-the-center vibration.
.Types for chips being prevented from scattered and noise being reduced due to backward exhaust system (exhaust hose).
.Easy to securely mount and dismount tipped tools.
.Ready to be used at any moment with all standard accessories (packed in a case).


*USES:
.Precision grinding of various types of metal molds.
.Cutting fins, facing, polishing, curving, internal machining for various metals.
.Cutting, grinding and polishing for plastics, stones, wood.
.Finishing of the welded surface.
.Many other purposes such as the facing of round shapes, inside surfaces and gear wheels.


*SPECIFICATIONS:
(AIR SUPPLIER:NIPPLE R1/4)

Model No.

Chucking Width (Φ mm)

Entire Length (mm)

Outside diameter of Main Body (Φ mm)

Max. r.p.m.

Air Supply Pressure

Expenditures of Air (Nl/min)

Weight of Main Body(g)

MS3H

2.35.3.0

138

16

57,000

0.6MPa

160

100

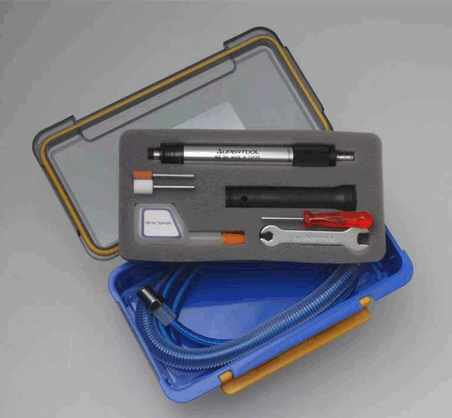

MS3H Standard Set (wtih case)
.MS3H Main Unit 1 pc.
.Air Hose (1.5m) 1 pc.
.Exhaust Hose (330mm) 1 pc.
.Rubber Grip (Φ18mm) 1 pc.
.Double-ended Wrench (6X8mm) 1 pc.
.Fixing Pin (Φ3mm) 1 pc.
.Spindle Oil (15cc) 1 pc.
.Mounted Wheel (R3613, W31013) 1 pc. each.
.Instruction Manual.

PACKING:


*ITEMS TO BE SEPARATELY PURCHASED (COLLET)
Model No. Applicable Grinder Collet
MSK3H2.4 COLLET for MS3H.MS312H (Φ 2.35mm)

MSK3H3.0 COLLET for MS3H.MS312H (Φ 3.00mm)
