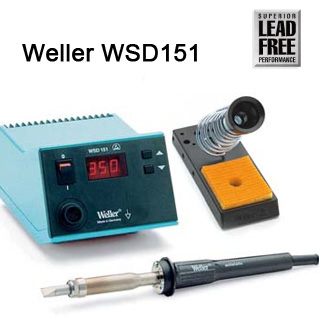

WELLER LEAD FREE SOLDERING STATIONS WSD151
No.:WSD151
Brand:
Manufacturer:GERMANY
Weight:4.40Kg
Price:570USD
Sorry, this product currently is out of stock, please send a
email to us about the delivery time. We will reply to you as soon as possible.
＊Price per unit.
＊Weight per unit.
＊3pin CHINA plug.
＊If you can't order this item online, you can send a inquiry to us by email.
＊Join HAKUMA CLUB to receive member price and other member benefits.
share to :
Description:

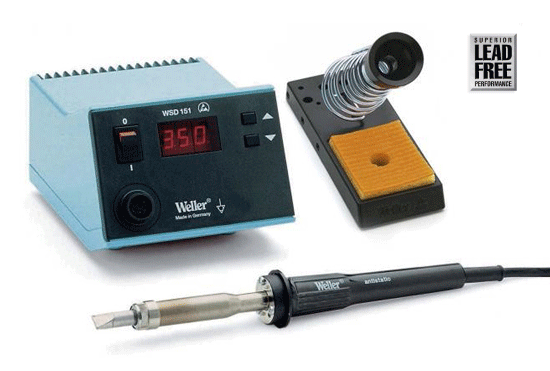

Model No.WSD151, 150W DIGITAL SOLDERING STATION ,
WITH LED DISPLAY - WELLER.
WELLER INDUSTRIAL LEAD FREE SOLUTION.
Weller patented Silverline technology based heating element is unique
■Soldering station digital 150 W, 230 V
■The Weller Silver Line Series has been developed for electronic experts.
■The tip temperature is electronicallycontrolled.
■The maximum temperature is 450°C (WSD 151 550°C) within a tolerance of ±2%.
■With the antistatic properties of the power unit and the soldering iron the stations meet all current requirements ofESD safety.
■Potential balance of the soldering tip can be effectedby a plug.
■All electronically controlled Weller tools can be connected up to the maximum power of the according station.
■The automatic tool recognition provides the optimal settings of the tools.
■150 W soldering iron WSP 150 for high temperature soldering·
■Digital controlled electronic for soldering tools up to150 W·
■Temperature range 50°C–550°C (automatically limited to 450°C if any other tool than WSP 150 is connected)·
■Temperature control via buttons
■3-position digital display
■Calibration box WCB 2 (see page 160) may be connected for CALIBRATION, LOCK OUT or OFFSET function.
■Protection class 1
■Antistatic housing
■Equipotential bonding (normal state hard grounded)
■Automatic tool recognition
■Dimensions: 166 x 115 x 101 mm (L x W x H)
■Packaging information
■Shelf pack size (Units per shelf pack) 1
■Delivery contents
■Power cord
■Potential free plug
＊Technical Data
■Display technology LED
■Equipotential Bonding/ hard grounding explanation Normal state
■Temperatur control comment Button
■Display included & Size Medium
■Display information content Medium
■ESD safe Yes
■Equipotential Bonding/ hard grounding Yes
■Display backlight No
■Antistatic housing Yes
■Temperature stability 5 °C
■Power unit wattage 150 W
■Mains supply Voltage 230 V
■Power supply frequency 50 Hz
■Output voltage 24 V
■Protection class Soldering iron 3
■Protection class Control/ Power unit 1
■Number of tools controlled simultaneously 1
■Temperature accuracy 9 °C
■Temperature regulation 50 - 550 °C
